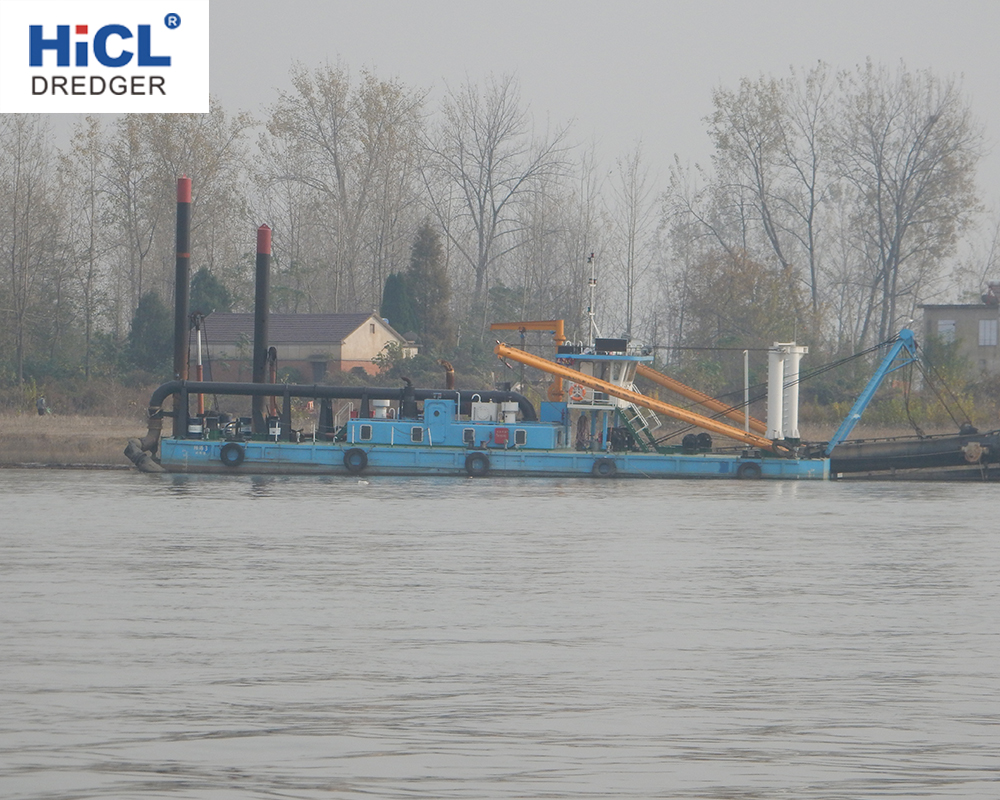

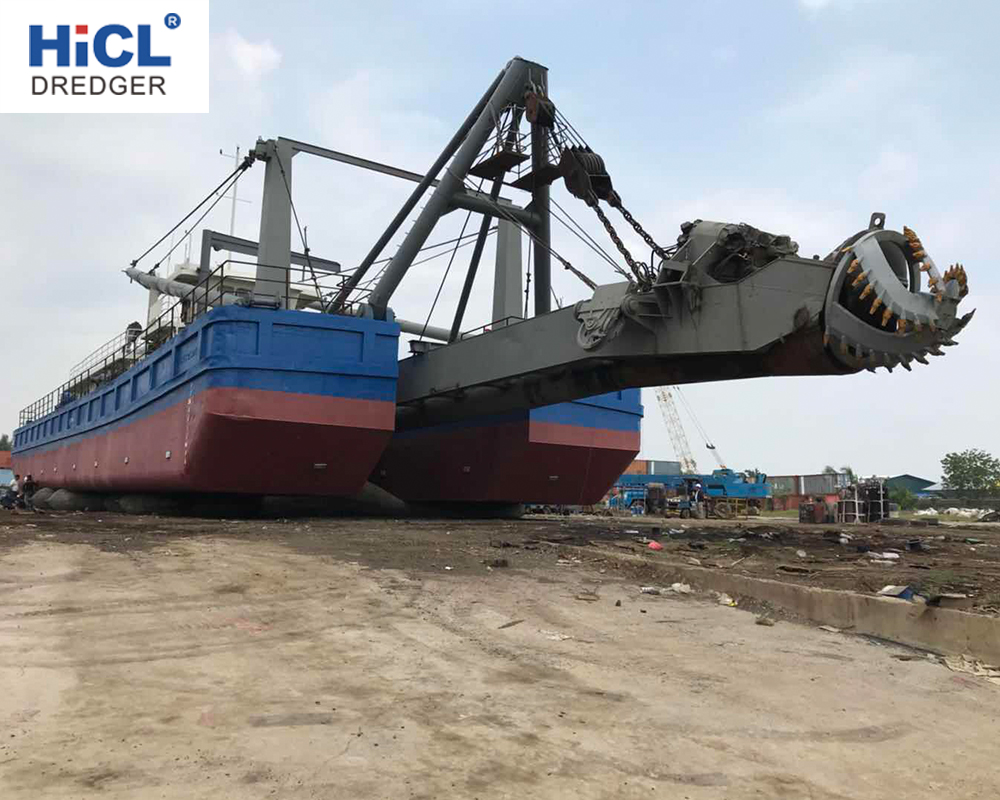

HCS400 16inch 2500m3/h Hydraulic Cutter Suction Dredger



General Description:

HCS series dredger are self-propelled or non self-propelled, portable cutter suction dredger. Its hull can be dismantled and re-assembled easily with box structure, which is equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices & carrier, anchor arm, deck crane and so on. It is widely used in sand-excavating, river dredging, desilting, reclamation for channels, land and port construction, etc.



Desc.

Spec.

Water flow

2500m3/h

Max. dredging depth 45

12m

Discharge distance

1200m

LOA

31m

Hull size(LxWxH)

24x7.2x2.2m

Main pontoon(LxWxH)

15x3.2x2.2m

Side pontoon(LxWxH)

20x2x2.2m

Structure

Can be dismantled and re-assembled at work site

Average draught

1.3m

Suction pipe dia.

450mm/18inch

Discharge pipe dia.

400mm/16inch

Main engine brand/power

Cummins/596kw

Rotate speed

1800rpm

Auxiliary engine brand/power

Cummins 224kw

Rotate speed

1800rpm

Hydraulic winch

80kn

Hydraulic cutter power

88kw

Cutter head dia.

1500mm

Spud cylinder dia.

160mm

Spud dia. & length

Φ530mmx17.5m

Emergency genset power

Cummins 24GF

Self-propeller

Optional

Spud carrier

Optional

Spud folder

Optional

Anchor Arm

Optional

HICL intelligent system

Optional

Underwater pump

Optional
