HCS150-800 6-32inch 500-7500m3/h Hydraulic Cutter Suction Dredger
General Description:

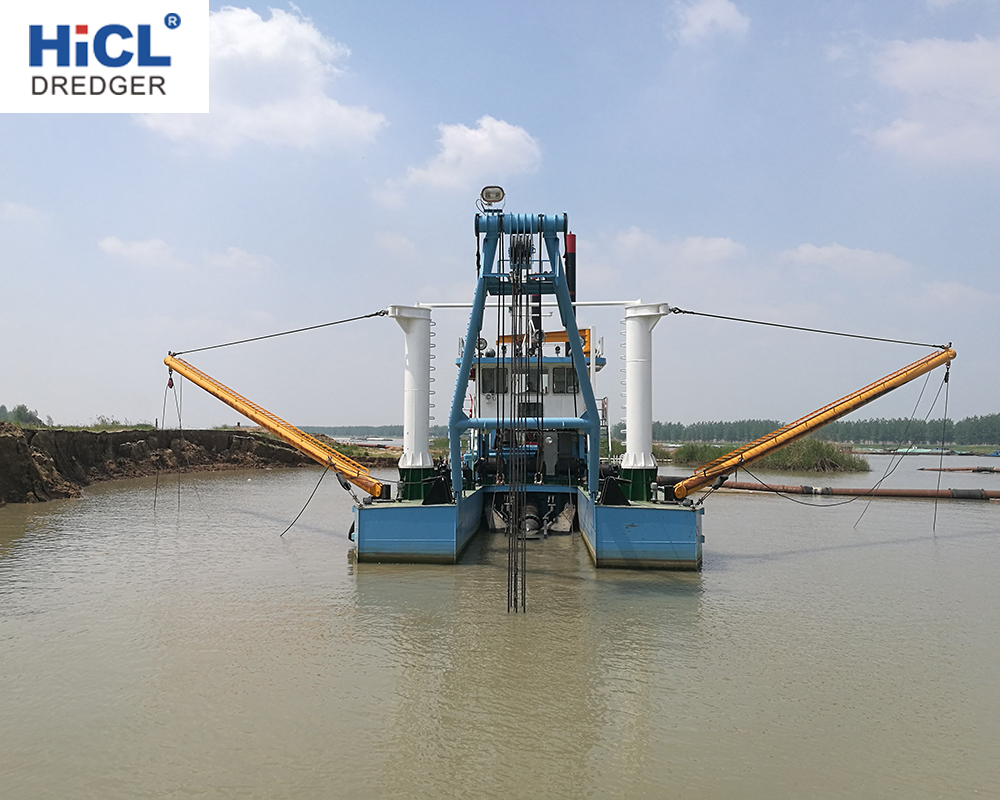

HCS series dredger are self-propelled or non self-propelled, portable cutter suction dredger. Its hull can be dismantled and re-assembled easily with box structure, which is equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices & carrier, anchor arm, deck crane and so on. It is widely used in sand-excavating, river dredging, desilting, reclamation for channels, land and port construction, etc.
|
Model |
Suction/Discharge Pipe inch(mm) |
Water Flow (m3/h) |
Dredging Depth (max. m) |
Discharge Distance (m) |
|
HCS150 |
6/6(150/150) |
500 |
6 |
500 |
|
HCS200 |
8/8(200/200) |
800 |
6 |
500 |
|
HCS250 |
12/10(300/250) |
1000 |
8 |
800 |
|
HCS300 |
14/12(350/300) |
1500 |
10 |
1000 |
|
HCS350 |
16/14(400/350) |
2000 |
12 |
1000 |
|
HCS400 |
18/16(450/400) |
2500 |
12 |
1200 |
|
HCS450 |
20/18(500/450) |
3000 |
14 |
1300 |
|
HCS500 |
22/20(550/500) |
3500 |
14 |
1500 |
|
HCS550 |
24/22(600/550) |
4000 |
15 |
2000 |
|
HCS600 |
26/24(650/600) |
5000 |
15 |
2000 |
|
HCS650 |
28/26(700/650) |
6000 |
15 |
2000 |
|
HCS700 |
30/28(750/700) |
7000 |
15 |
2200 |
|
HCS800 |
34/32(850/800) |
8000 |
18 |
2500 |
