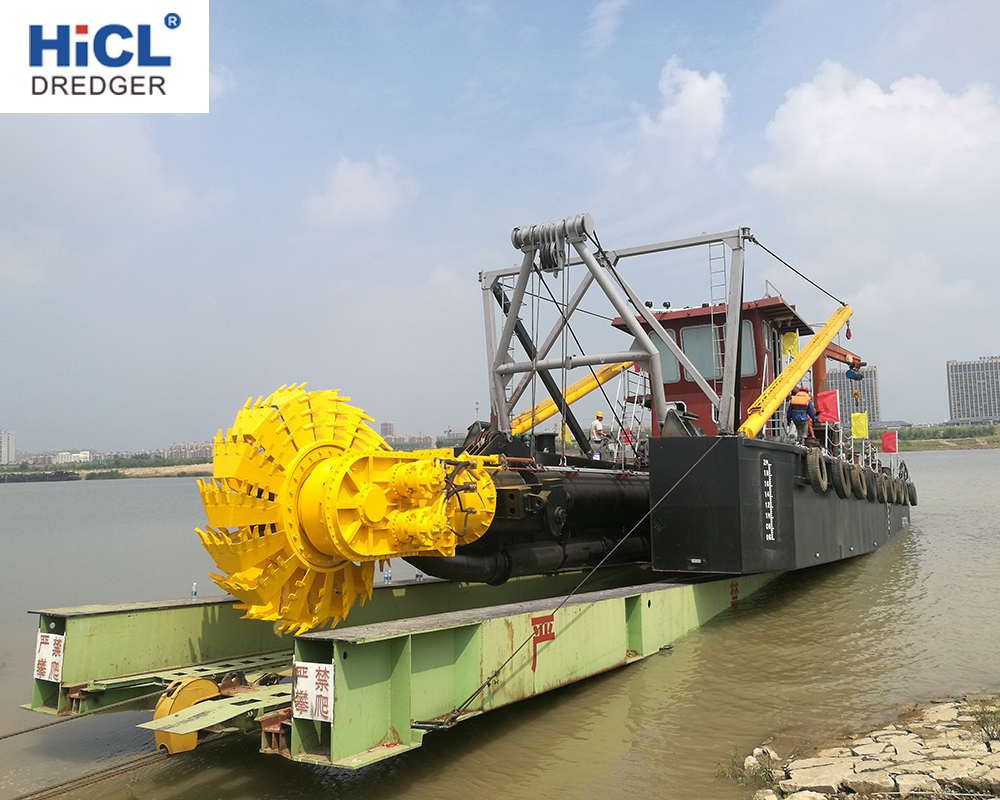

HWB250 10inch 1000m3/h Hydraulic Wheel Bucket Dredger
General Description:
HWB series wheel bucket dredger is large scale full hydraulic control, dismantled and re-assembled wheel bucket dredger, which is suitable for inland waterway dredging, ditches and reservoir dredging operations. The whole dredger adopts hydraulic and centralized control system. The main body consists of three pontoons, when used, it is spliced into a whole. The cabin is dismantled, which can lose height when through the limit height place such as bridge. When the dredger reaches the water no connected area, it can be dismantled and transports on long vehicles or trains. It is equipped with self-propeller, anchor arm, spud devices & carrier, deck crane and so on. The bucket-wheel driving device adopt lubricating oil, and independent positioning metal floating ring seal.
|
Desc. |
Spec. |
|
Water flow |
1000m3/h |
|
Max. dredging depth 45。 |
8m |
|
Discharge distance |
800m |
|
LOA |
23m |
|
Hull size(LxWxH) |
16x5.6x1.5m |
|
Main pontoon(LxWxH) |
11.5x2.6x1.5m |
|
Side pontoon(LxWxH) |
14x1.5x1.5m |
|
Structure |
Can be dismantled and re-assembled at work site |
|
Average draught |
0.85m |
|
Suction pipe dia. |
300mm/12inch |
|
Discharge pipe dia. |
250mm/10inch |
|
Main engine brand/power |
Cummins/298kw |
|
Rotate speed |
1800rpm |
|
Hydraulic winch |
40kn |
|
Hydraulic wheel bucket power |
50kw |
|
Wheel bucket dia. |
1600mm |
|
Spud cylinder dia. |
100mm |
|
Spud dia. & length |
Φ325mmx11m |
|
Emergency genset power |
Cummins 24GF |
|
Self-propeller |
Optional |
|
Spud carrier |
Optional |
|
Spud folder |
Optional |
|
Anchor Arm |
Optional |
|
HICL intelligent system |
Optional |
|
Underwater pump |
Optional |
