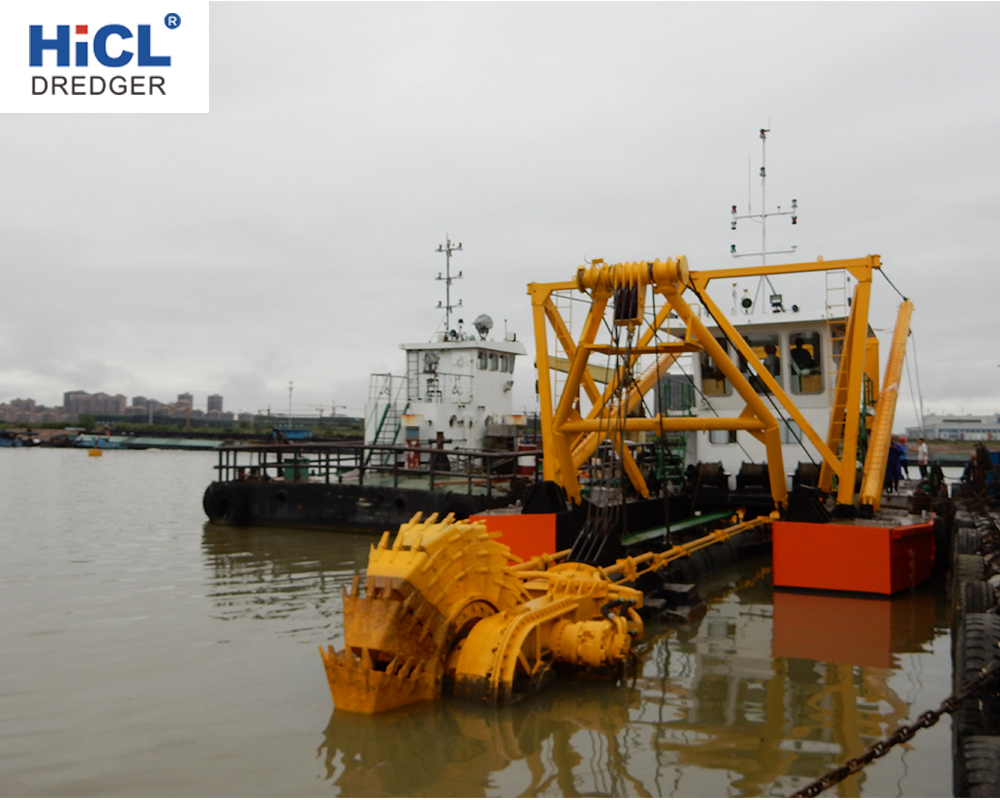

HWB550 22inch 4000m3/h Hydraulic Wheel Bucket Dredger



General Description:

HWB series wheel bucket dredger is large scale full hydraulic control, dismantled and re-assembled wheel bucket dredger, which is suitable for inland waterway dredging, ditches and reservoir dredging operations. The whole dredger adopts hydraulic and centralized control system. The main body consists of three pontoons, when used, it is spliced into a whole. The cabin is dismantled, which can lose height when through the limit height place such as bridge. When the dredger reaches the water no connected area, it can be dismantled and transports on long vehicles or trains. It is equipped with self-propeller, anchor  arm, spud devices & carrier, deck crane and so on. The bucket-wheel driving device adopt lubricating oil, and independent positioning metal floating ring seal.



Desc.

Spec.

Water flow

4000m3/h

Max. dredging depth 45

15m

Discharge distance

2000m

LOA

36m

Hull size(LxWxH)

26x8.6x2.4m

Main pontoon(LxWxH)

16x3.6x2.4m

Side pontoon(LxWxH)

28x2.4x2.4m

Structure

Can be dismantled and re-assembled at work site

Average draught

1.6m

Suction pipe dia.

600mm/24inch

Discharge pipe dia.

550mm/22inch

Main engine brand/power

Cummins/1193kw

Rotate speed

1800rpm

Auxiliary engine brand/power

Cummins 373kw

Rotate speed

1800rpm

Hydraulic winch

120kn

Hydraulic wheel bucket power

220kw

Wheel bucket dia.

3200mm

Spud cylinder dia.

180mm

Spud dia. & length

Φ600mmx21m

Emergency genset power

Cummins 24GF

Self-propeller

Optional

Spud carrier

Optional

Spud folder

Optional

Anchor Arm

Optional

HICL intelligent system

Optional

Underwater pump

Optional
